2007 V Rod Screaming Eagle

2007 V Rod Screaming Eagle

Harley Davidson VRSCSE2 Screamin Eagle V-Rod

Make Model

Harley Davidson VRSCSE2 Screamin Eagle V-Rod

Year

2006

Engine

Four stroke, 60� V-twin, DOHC, 4 valve per cylinder.

Capacity

1250 cc / 76.2 cu-in
Bore x Stroke 105 x 72 mm
Cooling System Liquid cooled
Compression Ratio 11.3;1
Lubrication Gerotor, wet sump

Induction

Electronic Sequential Port Fuel Injection

Ignition

Sequential, single fire non waste spark, coil on plug
Battery Sealed,maintenance-free, 12-volt, 12 amp-hour, 200 cca (per Battery Council International rating)
Starting Electric

Max Power

123 hp / 90.5 kW @ 8000 rpm

Max Torque

115 Nm / 86 ft-lbs@ 7000 rpm
Clutch Nine plate wet pressure fed with integral compensation

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 11.752 10.969 10.969
2nd 7.898 7.371 7.371
3rd 6.322 5.900 5.900
4th 5.459 5.095 5.095
5th 4.889 4.563 4.563
Frame Steel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded

Front Suspension

Huge 49mm telescopic forks
Front Wheel Travel 100 mm / 3.9 in

Rear Suspension

Dual coil over adjustable shock
Rear Wheel Travel 70 mm / 2.7 in

Front Brakes

2x 300mm discs 4 piston calipers

Rear Brakes

Single 300mm disc 4 piston caliper

Front Tyre

D207F 120/70ZR-19 60W

Rear Tyre

D207F 240/40R18 74W
Rake 34�
Fork Angle 36�
Trail 114 mm / 4.5 in
Dimensions Length 2363.4mm / 93.0 in
Wheelbase 1699 mm / 66.9 in
Seat Height Laden 660.40 mm  /  26 in
Unladen 688.34 mm  /  27.1 in
Dry Weight 298 kg / 657 lbs

Wet Weight

308 kg  /  679 lbs

Fuel Capacity

14 Litres / 3.7 US gal

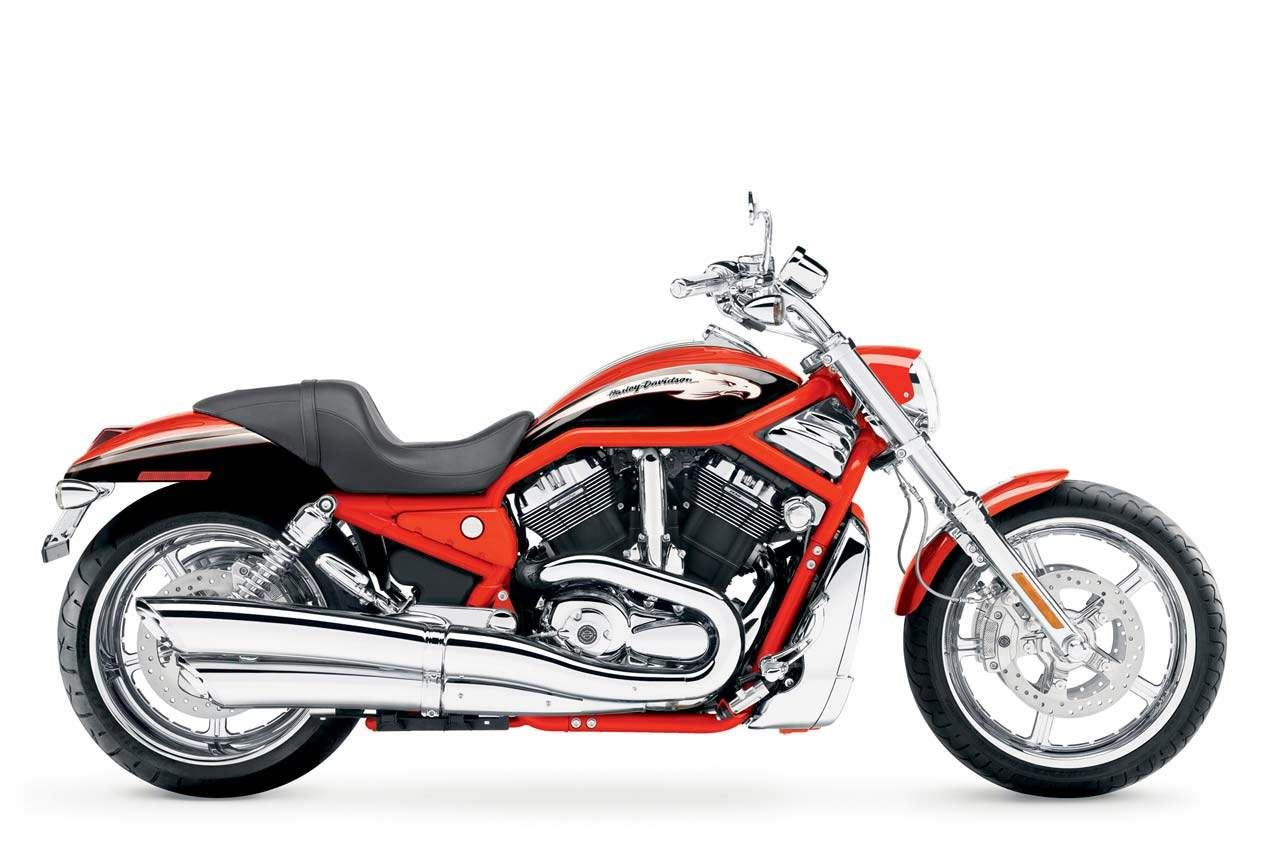

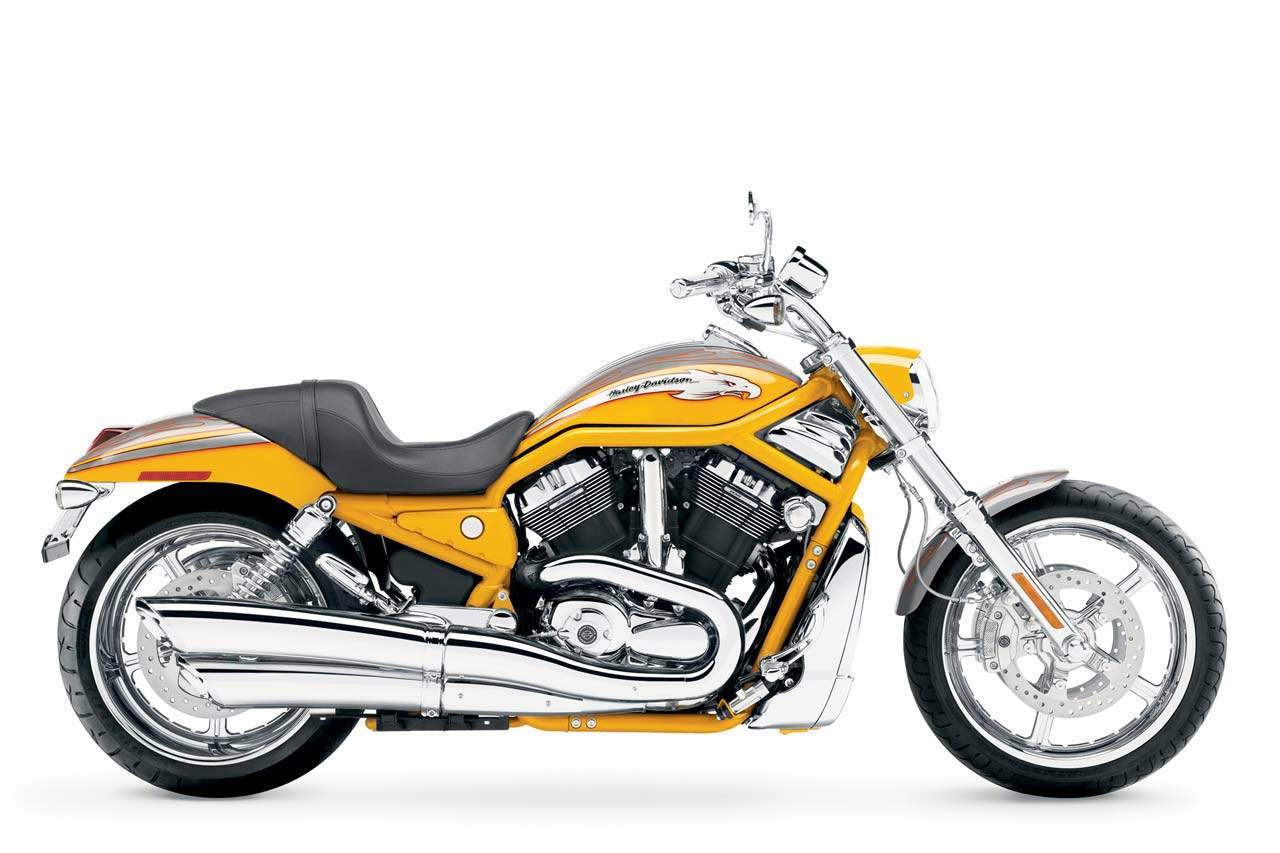

VRSCSE2 Screamin' Eagle� V-Rod Model Overview
The 2006 VRSCSE2 Screamin' Eagle V-Rod developed by the Harley-Davidson Custom Vehicle Operations (CVO) team features high-performance engine modifications and a host of special custom components that make this limited-edition V-Rod an even more powerful force among power-cruiser motorcycles.
Features of the 2006 VRSCSE2 Screamin' Eagle V-Rod include:

Paint: Electric Orange and Black
Scarlet Red Pearl and Charcoal Slate
Chrome Yellow Pearl and Platinum Pearl
Frame is color-coordinated powdercoat
Screamin' Eagle 1250cc Powertrain
105 mm Big Bore pistons
Big Bore cylinders
High flow heads
Optimized cam timing
New black and chrome finish
New 240 mm rear tire
New 8-inch x 18-inch rear wheel
Improved heavy duty clutch with anodized Alumite coated hubs
10 percent stiffer clutch spring
Brembo Brake systems
New custom license plate bracket
New push-button seat latch
New relocated key switch
Custom upper and lower side covers
Five-spoke forged Reactor wheels
New narrow Reactor rear sprocket
New 21 mm rear drive belt
Custom handlebar riser and rear riser cover
Riser clamp and speedo/tachometer bracket
1.25-inch fat handlebars with internal wiring
Spun aluminum-faced speedo and tachometer mounted on handlebar
Airbox cover console with LED fuel gauge, indicator lights and clock
Custom seat and passenger pillion with snakeskin embossed leather insert
Chrome headlight bucket
Muffler end caps
Clutch release cover with CVO emblem
Chrome billet front sprocket cover inserts
Chrome upper and lower triple trees
Chrome hand controls and master cylinders
Chrome billet-style mirrors
Braided coated stainless plated clutch and brake lines
Braided coated stainless control cables
Chrome rear swingarm
Chrome front fork sliders
Rear shocks with chrome uppers
Chrome footpegs
Chrome brake and shift levers
Chrome passenger footpeg brackets
Polished slotted stainless shift rod
Chrome swingarm pivot covers
Chrome oil dipstick
Chrome jiffy stand
Chrome front and rear wheel spacers
Chrome upper shock spacers
Chrome front axle nut covers
Chrome rear axle nut cover kit
CVO key
CVO storage cover

2007 V Rod Screaming Eagle
